Adsorbers for Gears.
Why does the use of an adsorber on gears make sense?

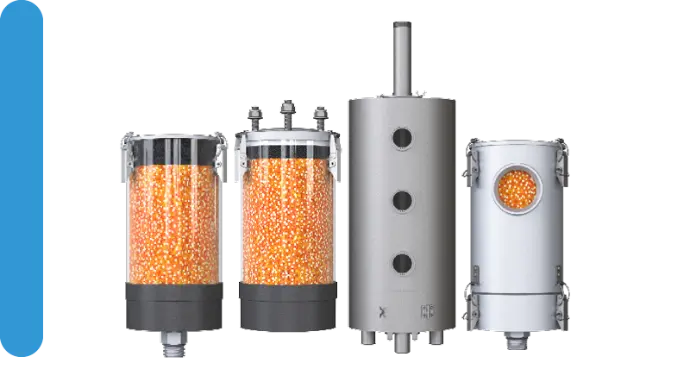

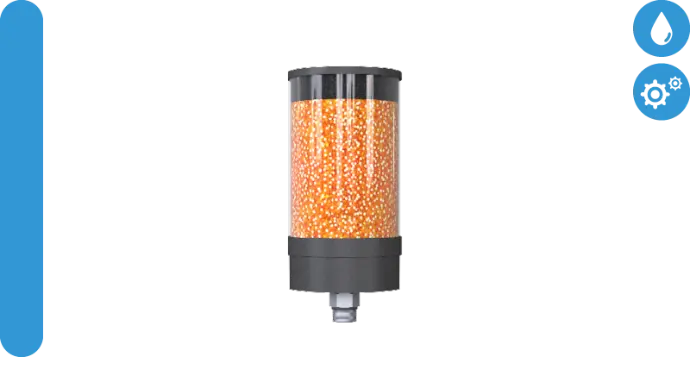

Gear units heat up during operation. This increases the oil volume and air is forced out of the gear unit to compensate for the pressure. When the gear unit cools down again at standstill, the oil volume decreases and air flows in from outside the system. The moisture contained in the air is thus introduced into the system and condenses as soon as the dew point is reached. Hydrolysis (rapid aging and degradation of additives), corrosion and poorer lubrication are resulting effects. Our GIEBEL BREATHER DRYERS provide a remedy by drying incoming air in advance. The desiccant contained in the dehumidifier absorbs the moisture and indicates by a color change when the cartridge is fully loaded and should be replaced.

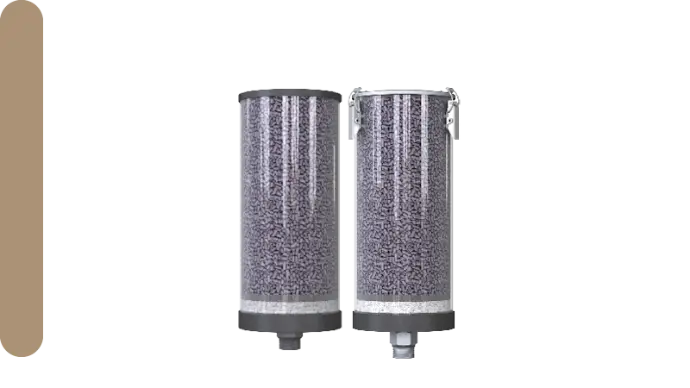

GIEBEL OIL MIST SEPERATORS are used where the escape of oil aerosols from the plant is to be prevented. They make an important contribution to improving air quality and protecting employees.

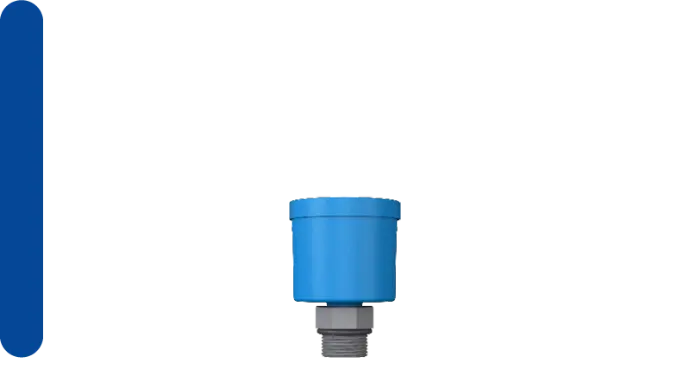

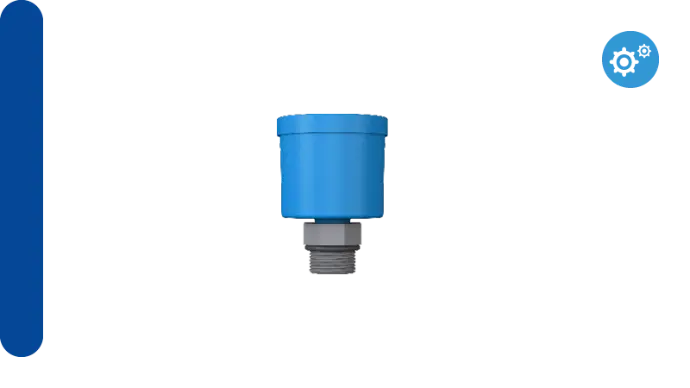

Our GIEBEL WATER SEPERATORS protect gearboxes from water droplet ingress while allowing them to breathe. They are an excellent alternative to adsorbers when liquid water is a challenge for a gearbox, but humidity does not cause problems.
Adsorber series for gears.

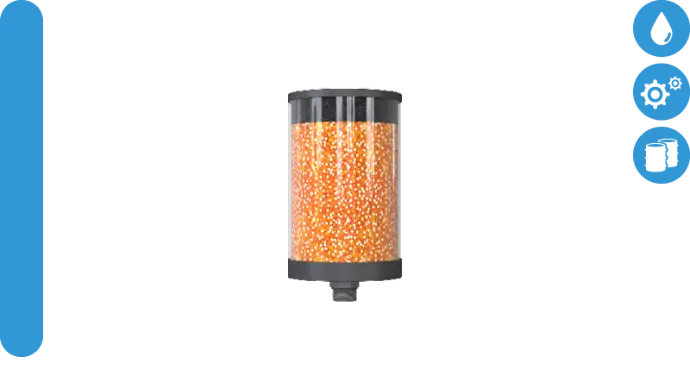

VV-D
Disposable version without valves, with FKM seal, for indoor, outdoor & offshore use.
VV-DV
Disposable version with valves, with FKM seal, for indoor, outdoor & offshore use.

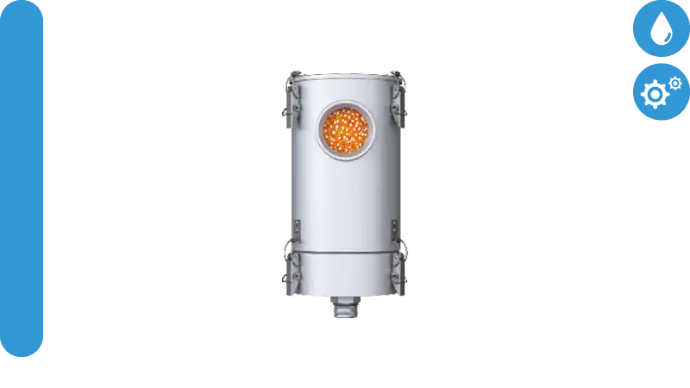

MA-RV
Reusable version with valves and FKM / EPDM seal, for indoor & outdoor use according to ATEX.

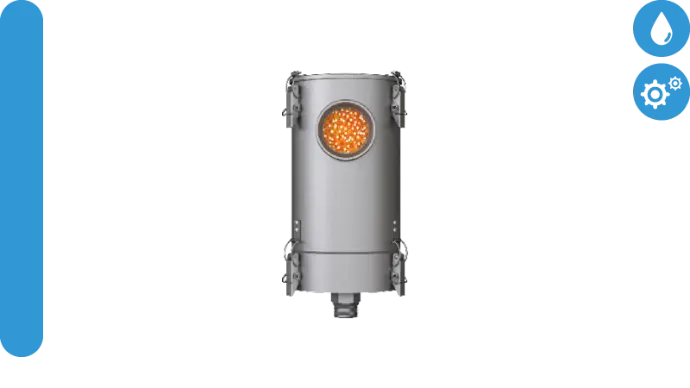

ME-RV
Reusable version with valves and FKM / EPDM seal, for indoor, outdoor & offshore use according to ATEX.
Adsorbers for drying the supply air
Please click on the air & oil volume below
VV-D 1L
Valves: No
Refillable: No
Use according to ATEX 2014: No
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: Yes
ORDER IN WEBSHOP
VV-DV 1L
Valves: Yes
Refillable: No
Sealing: FKM
Use according to ATEX 2014: No
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: Yes

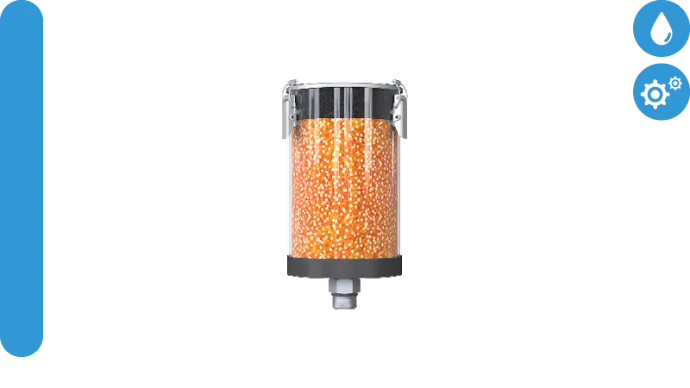

VV-R 1L
Valves: No
Refillable: Yes
Use according to ATEX 2014: No
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: No

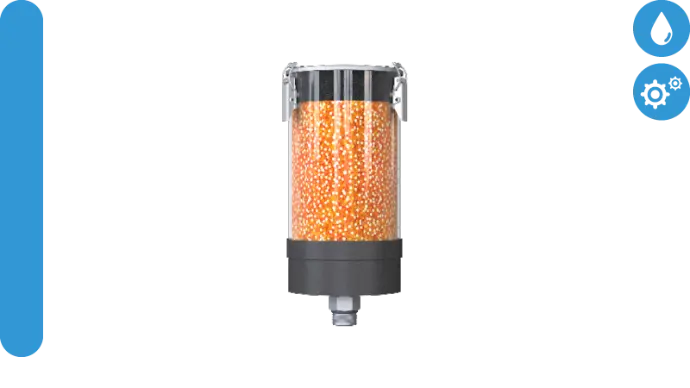

VV-RV 1L
Valves: Yes
Refillable: Yes
Sealing: FKM
Use according to ATEX 2014: No
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: No
MA-RV 1L
Valves: Yes
Refillable: Yes
Sealing: FKM / EPDM
Use according to ATEX 2014: Yes
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: No
VV-D 2M
Valves: No
Refillable: No
Use according to ATEX 2014: No
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: Yes
ORDER IN WEBSHOP
VV-DV 2M
Valves: Yes
Refillable: No
Use according to ATEX 2014: No
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: Yes
VV-R 2M
Valves: No
Refillable: Yes
Use according to ATEX 2014: No
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: No
VV-RV 2M
Valves: Yes
Refillable: Yes
Use according to ATEX 2014: No
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: No
VV-D 2L
Valves: No
Refillable: No
Use according to ATEX 2014: No
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: Yes
ORDER IN WEBSHOP
VV-DV 2L
Valves: Yes
Refillable: No
Use according to ATEX 2014: No
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: Yes
VV-R 2L
Valves: No
Refillable: Yes
Use according to ATEX 2014: No
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: No
VV-RV 2L
Valves: Yes
Refillable: Yes
Use according to ATEX 2014: No
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: No
MA-RV 2L
Valves: Yes
Refillable: Yes
Use according to ATEX 2014: Yes
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: No
ME-RV 2L
Valves: Yes
Refillable: Yes
Use according to ATEX 2014: Yes
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: Yes
VV-D 3M
Valves: No
Refillable: No
Use according to ATEX 2014: No
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: Yes
ORDER IN WEBSHOP
VV-DV 3M
Valves: Yes
Refillable: No
Use according to ATEX 2014: No
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: Yes
VV-R 3M
Valves: No
Refillable: Yes
Use according to ATEX 2014: No
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: No
VV-RV 3M
Valves: Yes
Refillable: Yes
Use according to ATEX 2014: No
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: No
MA-RV 3M
Valves: Yes
Refillable: Yes
Use according to ATEX 2014: Yes
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: No
ME-RV 3M
Valves: Yes
Refillable: Yes
Use according to ATEX 2014: Yes
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: Yes
VV-D 3L
Valves: No
Refillable: No
Use according to ATEX 2014: No
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: Yes
ORDER IN WEBSHOP
VV-DV 3L
Valves: Yes
Refillable: No
Use according to ATEX 2014: No
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: Yes
VV-R 3L
Valves: No
Refillable: Yes
Use according to ATEX 2014: No
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: No
VV-RV 3L
Valves: Yes
Refillable: Yes
Use according to ATEX 2014: No
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: No
MA-RV 3L
Valves: Yes
Refillable: Yes
Use according to ATEX 2014: Yes
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: No
ME-RV 3L
Valves: Yes
Refillable: Yes
Use according to ATEX 2014: Yes
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: Yes
VV-D 5M
Valves: No
Refillable: No
Use according to ATEX 2014: No
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: Yes
ORDER IN WEBSHOP
VV-DV 5M
Valves: Yes
Refillable: No
Use according to ATEX 2014: No
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: Yes
VV-R 5M
Valves: No
Refillable: Yes
Use according to ATEX 2014: No
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: No
VV-RV 5M
Valves: Yes
Refillable: Yes
Use according to ATEX 2014: No
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: No
MA-RV 5M
Valves: Yes
Refillable: Yes
Use according to ATEX 2014: Yes
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: No
ME-RV 5M
Valves: Yes
Refillable: Yes
Use according to ATEX 2014: Yes
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: Yes

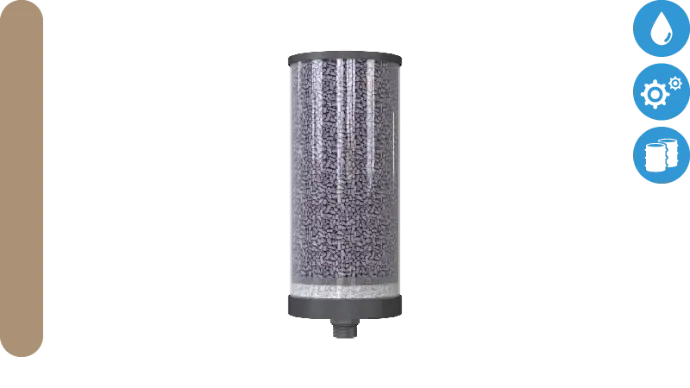

Adsorbers for the separation of pollutants
Please click on the air & oil volume below
VG-D 1L
Valves: No
Refillable: No
Use according to ATEX 2014: No
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: Yes
ORDER IN WEBSHOP

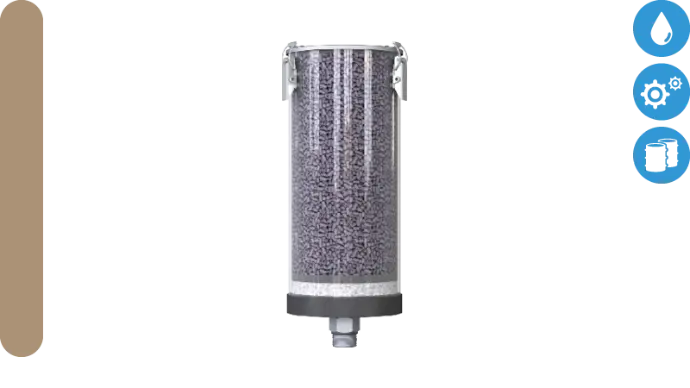

VG-R 1L
Valves: No
Refillable: Yes
Use according to ATEX 2014: No
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: Yes
ORDER IN WEBSHOP
VG-D 2L
Valves: No
Refillable: No
Use according to ATEX 2014: No
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: Yes
ORDER IN WEBSHOP
VG-R 2L
Valves: No
Refillable: Yes
Use according to ATEX 2014: No
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: Yes
ORDER IN WEBSHOP
VG-D 3L
Valves: No
Refillable: No
Use according to ATEX 2014: No
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: Yes
ORDER IN WEBSHOP
VG-R 3L
Valves: No
Refillable: Yes
Use according to ATEX 2014: No
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: Yes
ORDER IN WEBSHOP
VG-D 5L
Valves: No
Refillable: No
Use according to ATEX 2014: No
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: Yes
ORDER IN WEBSHOP
VG-R 5L
Valves: No
Refillable: Yes
Use according to ATEX 2014: No
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: Yes
ORDER IN WEBSHOP
VG-R 5XL
Valves: No
Refillable: Yes
Use according to ATEX 2014: No
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: Yes
ORDER IN WEBSHOP
