Adsorbers for Storage Tanks.
Why does the use of an adsorber on storage tanks make sense?
Storage tanks are gradually emptied during their use. To equalize the pressure, air flows in from outside. If hygroscopic substances are stored in the tanks (such as isocyanate and bio-oils), the humidity flowing in with the outside air causes a reduction in the quality of the stored substance. This process is accelerated by temperature fluctuations, especially when temperatures fall below the dew point and condensate forms. This also causes corrosion damage inside the tank.

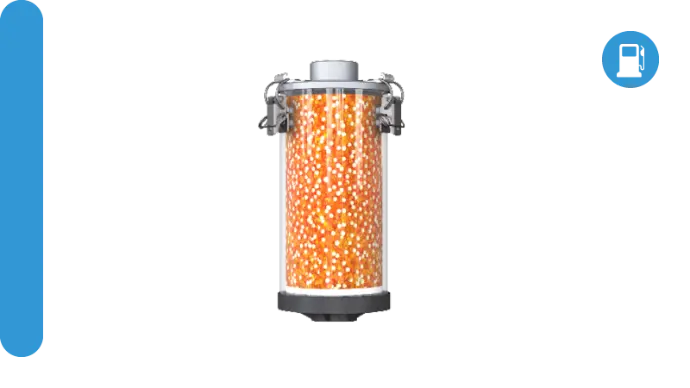

Our GIEBEL breather dryers provide a remedy by drying the incoming air in advance. The desiccant contained in the dehumidifier absorbs the moisture and indicates by a color change when the adsorber is fully loaded and should be replaced.
Adsorber series for storage tanks.
MA-RV
Reusable version with valves and FKM / EPDM seal, for indoor & outdoor use according to ATEX.
ME-RV
Reusable version with valves and FKM / EPDM seal, for indoor, outdoor & offshore use according to ATEX.
MS-R
Reusable version without valves, with FKM seal, for indoor, outdoor & offshore use according to ATEX.
Adsorbers for drying the supply air
Please click on the tank volume below
VV-RV 3L
Valves: Yes
Refillable: Yes
Use according to ATEX 2014: No
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: No
MA-RV 3L
Valves: Yes
Refillable: Yes
Use according to ATEX 2014: Yes
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: No
ME-RV 3L
Valves: Yes
Refillable: Yes
Use according to ATEX 2014: Yes
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: Yes
VV-RV 5L
Valves: Yes
Refillable: Yes
Use according to ATEX 2014: No
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: No
MA-RV 5L
Valves: Yes
Refillable: Yes
Use according to ATEX 2014: Yes
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: No
ME-RV 5L
Valves: Yes
Refillable: Yes
Use according to ATEX 2014: Yes
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: Yes
VV-RV 5XL
Valves: Yes
Refillable: Yes
Use according to ATEX 2014: No
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: No
MA-RV 5XL
Valves: Yes
Refillable: Yes
Use according to ATEX 2014: Yes
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: No
ME-RV 5XL
Valves: Yes
Refillable: Yes
Use according to ATEX 2014: Yes
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: Yes
MS-R 35L
Valves: No
Refillable: Yes
Use according to ATEX 2014: Yes
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: Yes
MS-R 50L
Valves: No
Refillable: Yes
Use according to ATEX 2014: Yes
Use indoor / below deck: Yes
Use outdoor / on land: Yes
Use offshore / on deck: Yes
Mounting variants adsorber & ventilation system.
For the use of adsorber and venting system on a storage tank, we offer 2 different mounting options.
End assembly
Through assembly
